Expansion Joint Devices AQUASTOP Type DSHA.T – 50 – ANG/125

dshat-50-ugl
montazhnaja-dsha.t-50-ugl

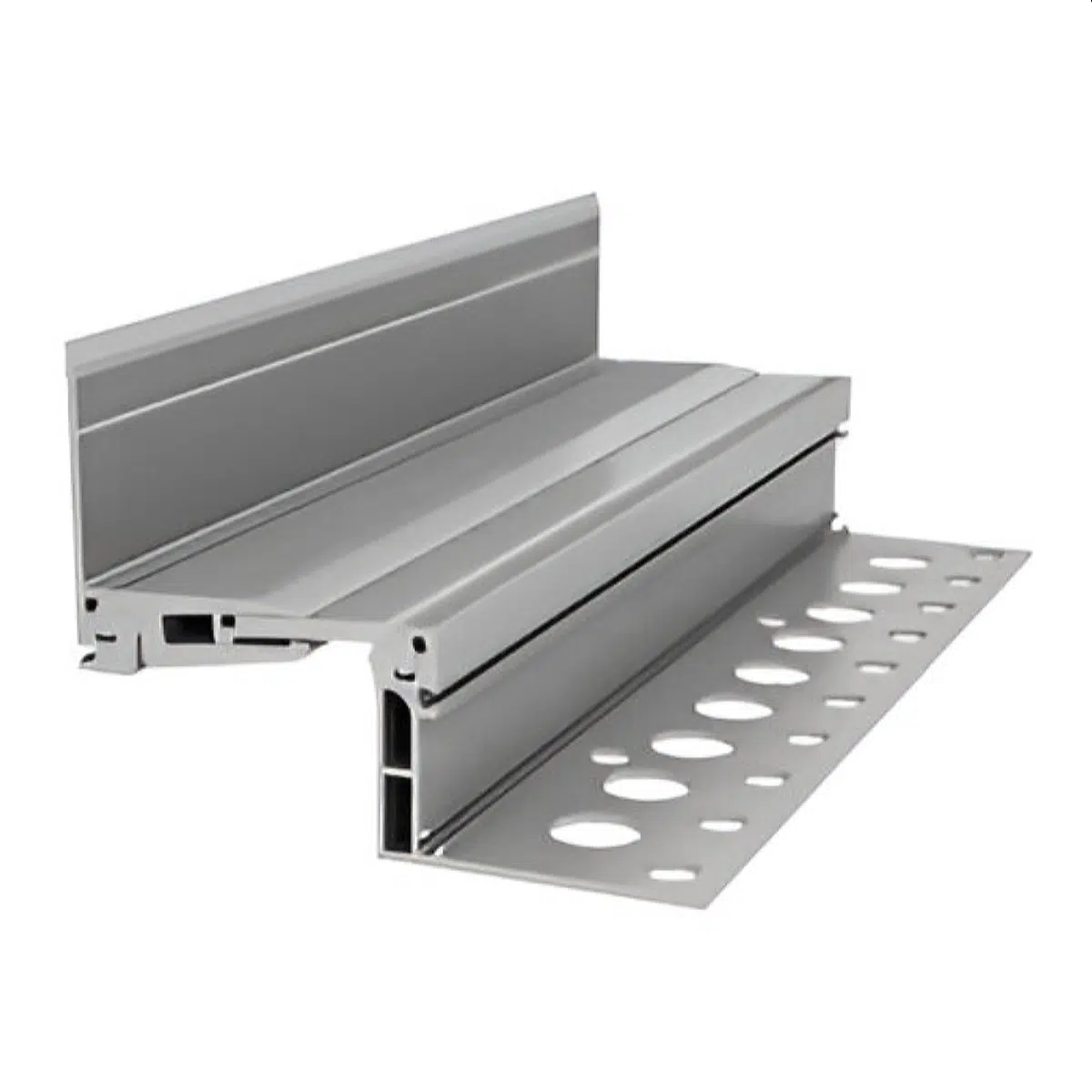

Expansion Joint Device AQUASTOP DSHA.T-50-ANG/125 is a 3-meter long embedded expansion joint. This device is suitable for both indoor spaces and open areas. Designed for angular connections (wall-to-floor, wall-to-ceiling) in critical structures. Reduces stresses caused by shrinkage and temperature fluctuations. Withstands freight vehicle loads.

Displacement, mm

Compression: 20
Tension: 20
Shear: 20

5925,00 ₽

Price/l.m.
loader-icon

Expansion Joint Devices AQUASTOP Type DSHA.T – 50-ANG/125 — designed for protecting corner joints in horizontal and vertical structures (wall, floor, ceiling junctions, transitions between rooms) in areas with high pedestrian and freight vehicle traffic: shopping centers, warehouses, office spaces. Joint width — 70 mm. Suitable for joints in floor structures with thickness — 50 mm. The guides are installed using embedded method. Equipped with aluminum compensator.

Technical advantages:

  • Material: aluminum guides (GOST standard), compensator – aluminum.
  • Strength: designed for mechanical and operational loads.
  • Corrosion resistance: resistant to moisture, temperature fluctuations, aggressive environments.
  • Durability: aluminum is corrosion-resistant, compensator can be replaced without dismantling the profile.

Installation:

  • Installation method: embedded, with fixation of guides in concrete base.
  • Mounting: 3-meter long aluminum pressure bars, anchors or dowels.
  • Specifics: angular design for complex junctions (e.g., wall-to-floor transitions).

Additional information

Compensator Material

Aluminum
Country of manufacture

Russia
Profile Type

Angular
Installation Type

Embedded
Load - MPa

1,0
A (Joint Width), mm

125
B (Insert Width), mm

138
C (Profile Width), mm

195
Profile Height, mm

50
Length

3000 mm

Installation Guidelines for AQUASTOP® DSHA.T-0 or DSHA.T-0-UGL Expansion Joint Devices

  1. Clean the work area from dirt and debris.
  2. If the concrete surface (hereinafter referred to as the mounting area) (item 3) is contaminated with bitumen, cement milk, grease, or oils, it should be cleaned using appropriate methods.
  3. If there are pores and cavities on the mounting area surface along the expansion joint, exposed coarse aggregate, protruding reinforcement, visible concrete mixture segregation, or cracks in the concrete, repairs should be performed.
  4. The suitability of the mounting area should be checked using a 2000 mm long straightedge. The maximum allowable gap in the longitudinal direction between the concrete surface and the straightedge should not exceed 2 mm, and in the transverse direction no more than 1 mm.
  5. Place extruded polystyrene (item 5) into the expansion joint gap.
  6. After instrumental verification of the position of DSHA.T-0 or DSHA.T-0-UGL expansion joint device sections (item 1) (hereinafter referred to as devices), mark drilling locations with an industrial marker through the mounting holes for countersunk head anchor screws R-LX-08X075-CS (item 4) and countersunk head anchor screws R-LX-06X050-CS for wall structures (item 4.1) (hereinafter referred to as anchor screws), with a 180 mm pitch.
  7. Remove devices from mounting areas (item 3) and begin drilling holes. Holes for fasteners should be drilled with 8 mm diameter (R-LX-08X075-CS) and 6 mm diameter (R-LX-06X050-CS) to a depth exceeding the fastener length by 20 mm. Clean holes from drilling debris using compressed air or an industrial vacuum. Special attention should be paid to the selection of parameters and drill sharpening quality.
    ⚠️ Important! It is not advisable to drill holes through the device's mounting holes.
  8. Apply primer to the cleaned and leveled mounting area surface and roll out GERLEN T 100/3 tape sealant (item 2) with a thickness of at least 3 mm and pressure of at least 1 MPa.
    Note: Prepare primer from GERLEN and "Kalosha" gasoline in a ratio of 4.8 kg (one roll) to 6 liters. Primer viscosity should be 15-16 seconds in a VZ-4 viscometer funnel.
  9. Remove the protective film from GERLEN (item 2), apply primer, and lay the device sections (item 1). Remove air bubbles with a roller using pressure of at least 1 MPa.
  10. Place anchor screws into mounting holes and use a screwdriver to tighten until contact with the device section, leaving them loosened. Final tightening should be performed after installation of the next section. Join sections with a 150 mm offset of the guide seams relative to the compensator. Tightening torque:
    • 900 Nm for R-LX-08X075-CS
    • 400 Nm for R-LX-06X050-CS
  11. Install the floor structure (item 5) according to project documentation.

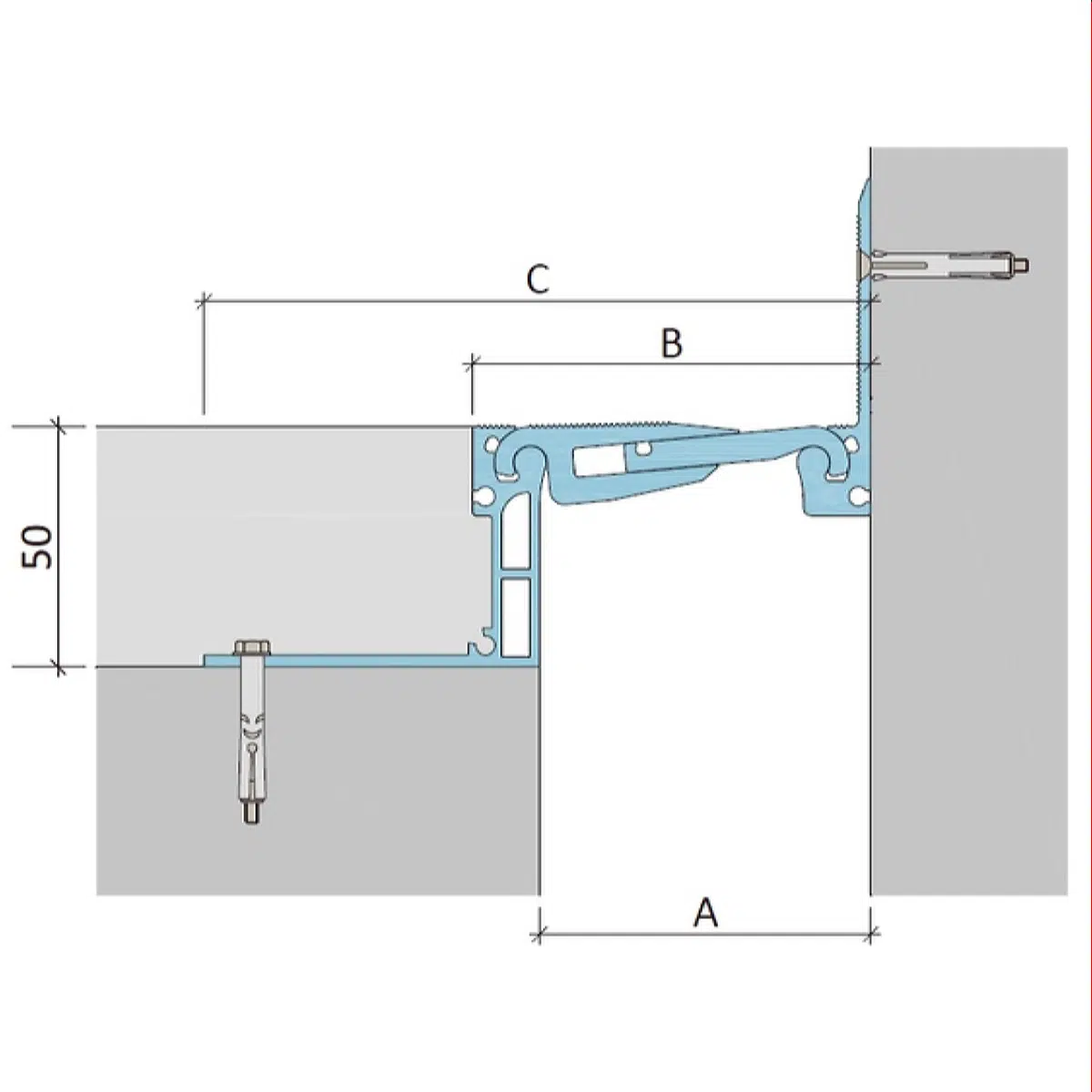

Installation diagram of AQUASTOP® DSHA.T expansion joint device



where:
- A - Support spacing of the expansion joint device;
- B - Visible width of the device;
- C - Installation width of the device;
- Bs - Actual width of the expansion joint.

For non-standard defects - contact OOO TD "GYDROMIX".

Download Files for AQUASTOP® DSHA.T Expansion Joint Devices

PDFDownload Aquastop Product Catalog Part 2: Expansion Joint Devices
PDFDownload AQUASTOP DSHA.T Device Specifications
PDFDownload AQUASTOP DSHA.T-ANG (on supports) Device Specifications
