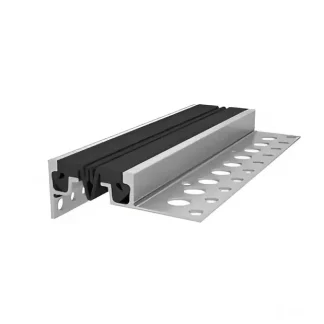

Expansion Joint Devices AQUASTOP Type DSHN – 30/070

dshn-30
dshn-30-montazhnaja

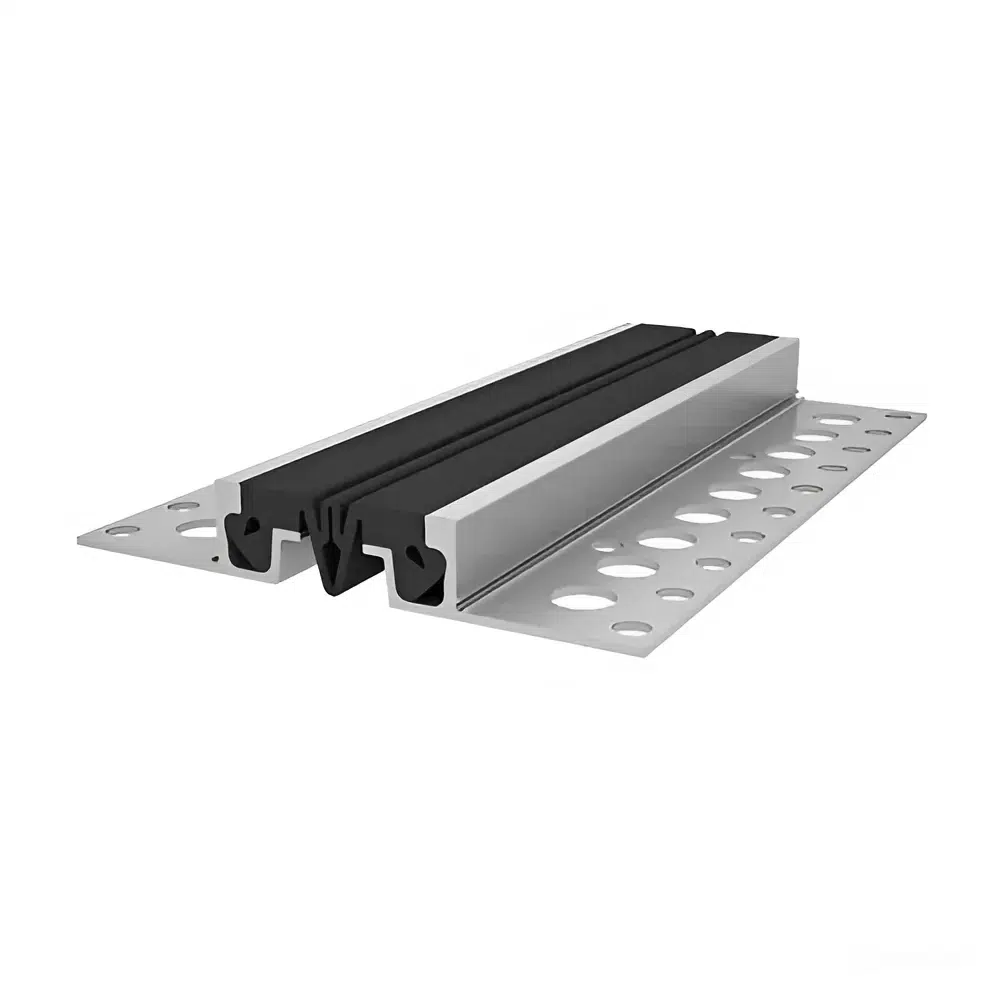

Expansion Joint Device AQUASTOP DSHN-30/070 is a 3-meter long embedded expansion joint designed for joint installation. This device is suitable for both indoor spaces and open areas. Engineered to compensate for deformations in horizontal and vertical structures (floors, walls, ceilings). Reduces stresses caused by shrinkage and temperature fluctuations. Withstands truck loads.

Displacement, mm

Compression: 25
Tension: 15
Shear: 30

4414,00 ₽

Price/l.m.
loader-icon

Expansion Joint Devices AQUASTOP Type DSHN — 30/070 designed for protecting deformation joints in horizontal structures. They are ideally suited for use in areas with moderate loads, such as office spaces, retail halls, and warehouses. This device is effective in structures with floor height of 30 mm and provides reliable protection for a joint with width of 70 mm.

Features:

  • Applicable for floor structures with height of 30 mm.
  • Joint width is 70 mm.
  • Aluminum guides contribute to the structure’s durability.

Technical advantages:

  • Materials: Aluminum guides and a wear-resistant compensator made of EPDM rubber.
  • Strength: The device is designed for moderate mechanical and operational loads.
  • Resistance: Components are resistant to corrosion, moisture, and temperature fluctuations.

Installation:

  • Installation method: Embedded method with fixation into the concrete base.
  • Mounting: Aluminum pressure bars and anchors or dowels are used.

Additional information

Compensator Material

EPDM
Country of manufacture

Russia
Profile Type

Straight
Installation Type

Embedded
Load - MPa

2.5
A (Joint Width), mm

70
B (Insert Width), mm

115
C (Profile Width), mm

230
Profile Height, mm

30
Length

3000 mm

Installation Guidelines for AQUASTOP® DSHN Expansion Joint Devices

  1. Preparatory Work:
    • Clean the substrate surface from dirt, debris, and dust.
    • If necessary, level the substrate with a polymer-cement mixture or equivalent.
    • Repair defects (cracks, pores, exposed reinforcement).
  2. Temperature Conditions: Perform installation at air temperatures between +5°C and +30°C.
  3. Layout and Gaps:
    • Install beacons according to the finished floor level (starting from a reference point near the wall).
    • Maintain an expansion gap of ≤10 mm around the perimeter of walls.
  4. Device Installation:
    • Assemble sections by embedding support components in adhesive/sealant.
    • Connect sections with 150 mm staggered joints.
    • ⚠️ Prohibited: Use anchor fasteners.
  5. Additional Operations (if required):
    • Fill gaps with polyurethane sealant.
    • Perform thermal welding of the compensator (185-195°C).
    • Apply primer (composition: as specified in project documentation).



Universal Requirements:
- Compliance with SP 71.13330-2017;
- Verify substrate evenness using a straightedge (tolerance: ≤2 mm longitudinally, ≤1 mm transversely);
- Fastener tightening torque: (specify for particular model);
- All parameters (A, B, C, Bs) to be determined by project specifications.

⚠️ Important! For non-standard conditions, consult OOO TD "GYDROMIX".
