Expansion Joint Devices AQUASTOP Type DSHN – ANG/115

dshn-ugl
dshn-ugl-montazhnaja

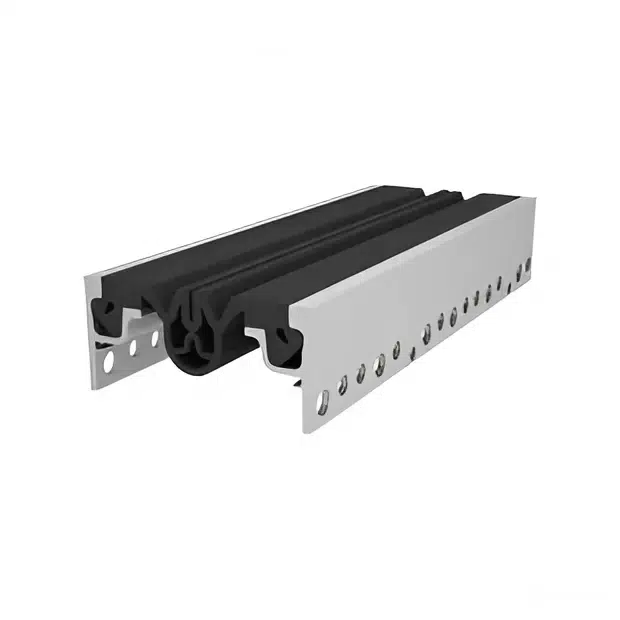

Expansion Joint Device AQUASTOP DSHN-ANG/115 is a 3-meter long embedded expansion joint. This device is suitable for both indoor spaces and open areas. Engineered for angular connections (wall-floor, wall-ceiling) in critical structures. The compensator is made of heat-resistant, light-resistant, ozone-resistant, and frost-resistant EPDM rubber, providing compensation for significant movements. Reduces stresses caused by shrinkage and temperature fluctuations. Withstands truck loads.

Displacement, mm

Compression: 25
Tension: 15
Shear: 115

4005,00 ₽

Price/l.m.
loader-icon

Expansion Joint Devices AQUASTOP DSHN — ANG/115 designed for protecting angular joints in areas with heavy loads, such as bridge structures, parking lots, or warehouse territories. The device provides reliability in structures and protection for joints with width of 115 mm.
Features:

  • Used in angular connections.
  • Joint width — 115 mm.
  • Reliable for use in areas with expected high load intensity.

Technical advantages:

  • Materials: Contains aluminum guides and an elastic EPDM compensator.
  • Strength: Designed for significant mechanical and operational loads.
  • Resistance: The device withstands exposure to aggressive environments and significant temperature fluctuations.

Installation:

  • Installation method: Embedded method of installing guides.
  • Mounting: Carried out using aluminum pressure bars, anchors or dowels.
  • Specifics: Optimal for angular joints and complex structures, for example, in wall-floor transition areas.

Additional information

Compensator Material

EPDM
Country of manufacture

Russia
Profile Type

Angular
Installation Type

Embedded
Load - MPa

2.0

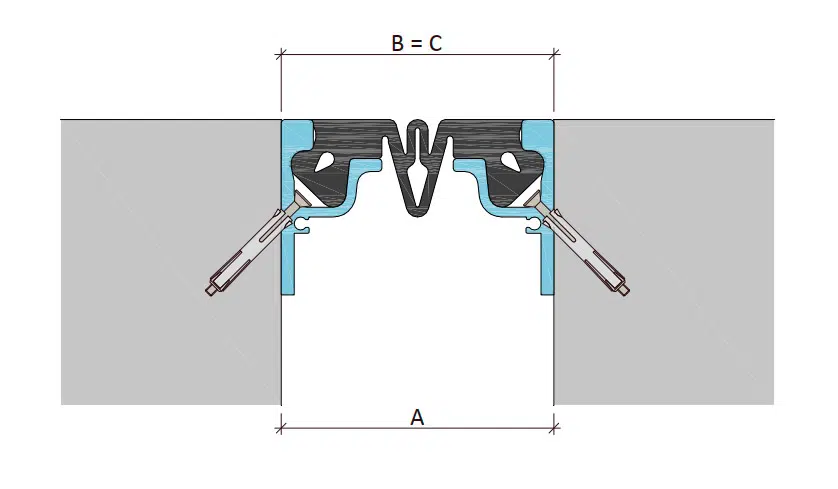

A (Joint Width), mm

115
B (Insert Width), mm

115
C (Profile Width), mm

115
Length

3000 mm

Installation Guidelines for AQUASTOP® DSHN Expansion Joint Devices

  1. Preparatory Work:
    • Clean the substrate surface from dirt, debris, and dust.
    • If necessary, level the substrate with a polymer-cement mixture or equivalent.
    • Repair defects (cracks, pores, exposed reinforcement).
  2. Temperature Conditions: Perform installation at air temperatures between +5°C and +30°C.
  3. Layout and Gaps:
    • Install beacons according to the finished floor level (starting from a reference point near the wall).
    • Maintain an expansion gap of ≤10 mm around the perimeter of walls.
  4. Device Installation:
    • Assemble sections by embedding support components in adhesive/sealant.
    • Connect sections with 150 mm staggered joints.
    • ⚠️ Prohibited: Use anchor fasteners.
  5. Additional Operations (if required):
    • Fill gaps with polyurethane sealant.
    • Perform thermal welding of the compensator (185-195°C).
    • Apply primer (composition: as specified in project documentation).



Universal Requirements:
- Compliance with SP 71.13330-2017;
- Verify substrate evenness using a straightedge (tolerance: ≤2 mm longitudinally, ≤1 mm transversely);
- Fastener tightening torque: (specify for particular model);
- All parameters (A, B, C, Bs) to be determined by project specifications.

⚠️ Important! For non-standard conditions, consult OOO TD "GYDROMIX".

Download Files for AQUASTOP® DSHN Expansion Joint Devices

PDFDownload Aquastop Product Catalog Part 2: Expansion Joint Devices
PDFDownload AQUASTOP DSHN Device Specifications
PDFDownload AQUASTOP DSHN-UGL (on supports) Device Specifications
