Expansion Joint Devices AQUASTOP Type DSHO – 24/050

dsho-024
montazhnaja-dsho-24

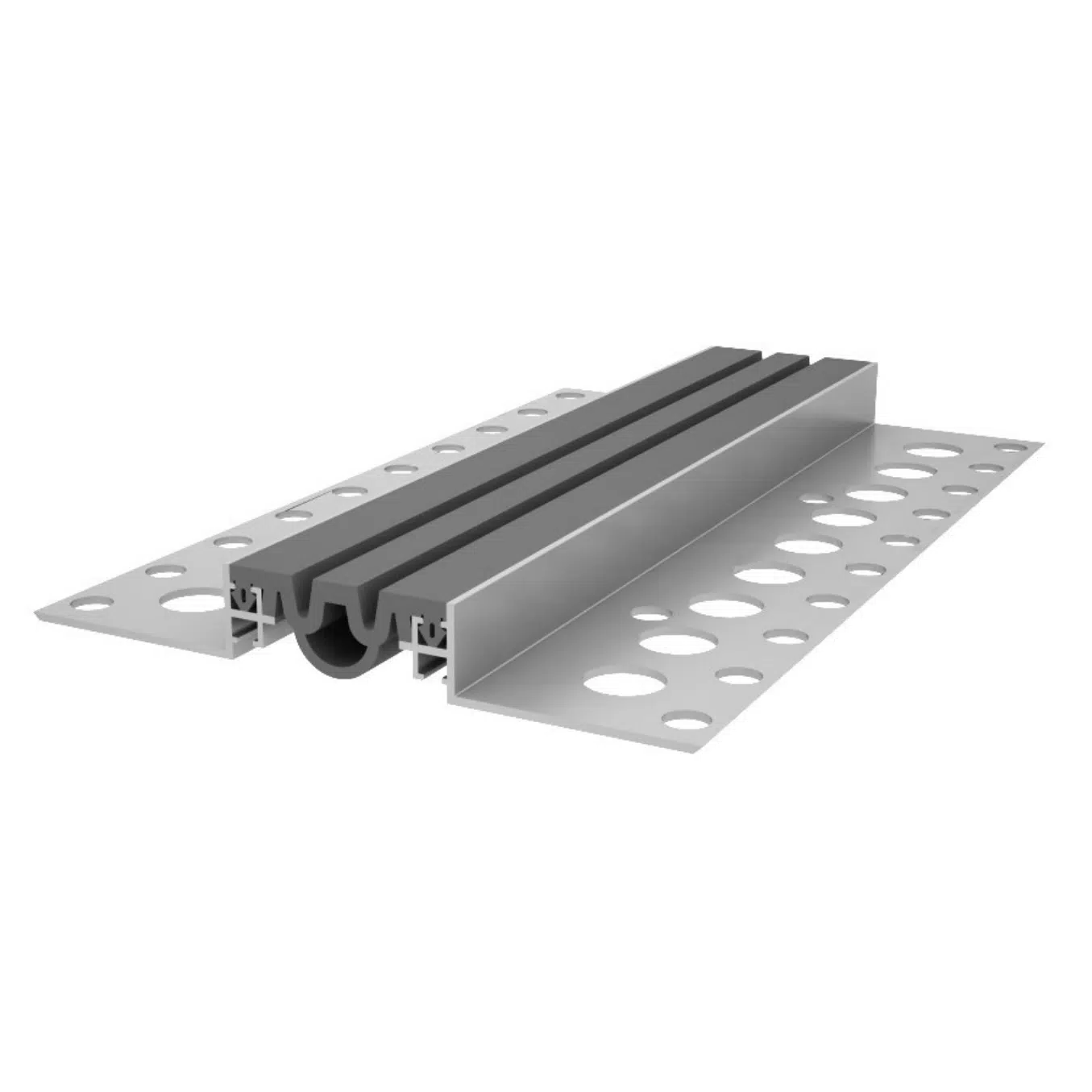

Expansion Joint Device AQUASTOP DSHO-24/050 is a 3-meter long embedded expansion joint designed for joint installation. This device is suitable for both indoor spaces and open areas. Engineered to compensate for deformations in horizontal and vertical structures (floors, walls, ceilings). Reduces stresses caused by shrinkage and temperature fluctuations. Withstands light vehicle load.

Displacement, mm

Compression: 9
Tension: 9
Shear: 6

1919,00 ₽

Price/l.m.
loader-icon

Expansion Joint Devices AQUASTOP Type DSHO — 24/050 – designed for protecting joints in horizontal and vertical structures (floors, walls, ceilings) in areas with high pedestrian and light vehicle traffic: shopping centers, warehouses, office spaces. Joint width — 50 mm. Suitable for joints in floor structures with thickness — 24 mm. The guides are installed using embedded method. The device consists of perforated aluminum guides and an elastic profiled compensator made of thermoplastic elastomer (TPE) in the center.

Technical advantages:

  • Material: aluminum guides (GOST standard), compensator — wear-resistant TPE.
  • Strength: designed for mechanical and operational loads.
  • Corrosion resistance: resistant to moisture, temperature fluctuations, aggressive environments.
  • Durability: aluminum is corrosion-resistant, compensator can be replaced without dismantling the profile.

Installation:

  • Installation method: embedded, with fixation of guides in concrete base.
  • Mounting: mechanical overlay installation using anchors or dowels.
  • Additional: angular execution available for complex joints.

Additional information

Compensator Material

TEP
Country of manufacture

Russia
Profile Type

Straight
Installation Type

Embedded
Load - MPa

0,20
A (Joint Width), mm

50
Length

3000 mm
B (Insert Width), mm

50
C (Profile Width), mm

171
Profile Height, mm

24

Installation Guidelines for AQUASTOP® DSHO Expansion Joint Devices

  1. Preparatory Work:
    • Clean the base surface from dirt, debris, and dust.
    • If necessary, level the base with a polymer-cement mixture or equivalent.
    • Repair defects (cracks, pores, exposed reinforcement).
  2. Temperature Conditions: Perform work at air temperatures between +5°C and +30°C.
  3. Layout and Gaps:
    • Install beacons according to the finished floor level (starting from a reference point near the wall).
    • Leave a damping gap ≤10 mm along the perimeter of the walls.
  4. Device Installation:
    • Assemble the sections, embedding the supporting parts into adhesive/sealant.
    • Join sections with 150 mm staggered seams.
    • ⚠️ Prohibited: Use anchor fasteners.
  5. Additional Operations (if required):
    • Fill gaps with polyurethane sealant.
    • Perform thermal welding of the compensator (185-195°C).
    • Apply primer (composition: specify in the project).
DSHO-24 corner installation diagram
DSHO-24 installation diagram



Universal Requirements:
- Compliance with SP 71.13330-2017;
- Check base evenness with a straightedge (tolerance: ≤2 mm longitudinally, ≤1 mm transversely);
- Fastener tightening torque: (specify for particular model);
- All parameters (A, B, C) are determined by the project.

⚠️ Important! For non-standard conditions, consult OOO TD "GYDROMIX".

Download Files for AQUASTOP® DSHO Expansion Joint Devices

PDFDownload Aquastop Product Catalog Part 2: Expansion Joint Devices
PDFDownload AQUASTOP DSHO Device Specifications
