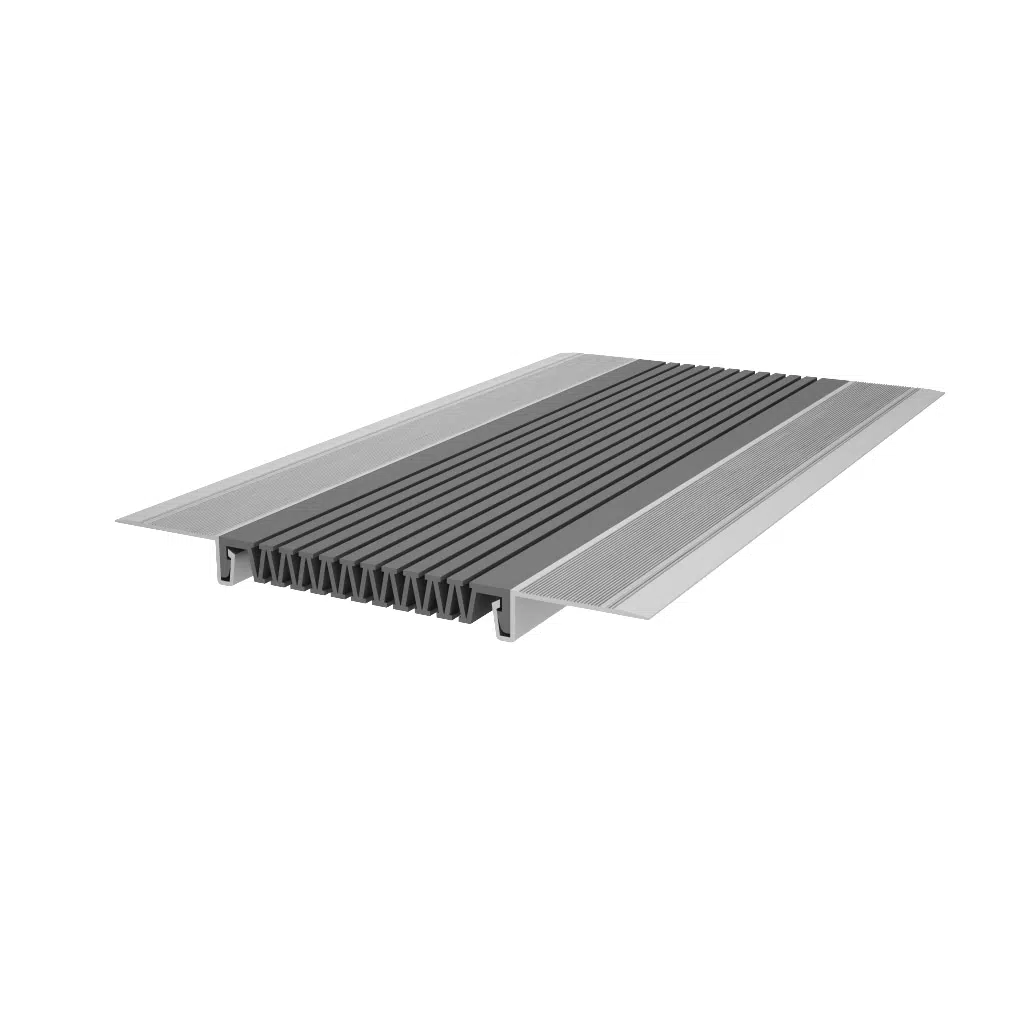

Expansion Joint Devices AQUASTOP Type DSHS-0/150

dshs-0_130
dshs-0-montage_duo

Expansion Joint Device AQUASTOP DSHS-0/150 is a 3-meter long overlay expansion joint designed for joint installation. This device is suitable for both indoor spaces and open areas. Engineered to compensate for deformations in horizontal and vertical structures (floors, walls, ceilings). Reduces stresses caused by shrinkage and temperature fluctuations. Not designed for loads

Displacement, mm

Compression: 50
Tension: 50
Shear: 170

2136,00 ₽

Price/l.m.
loader-icon

Expansion Joint Devices AQUASTOP Type DSHS-0/150 — designed for protecting joints in horizontal and vertical structures (floors, walls, ceilings). Performs aesthetic and protective functions of compensating for significant movements. Overlay installation provides simple integration into finish coatings. Joint width — 150 mm. Equipped with a compensator made of thermoplastic elastomer (TPE), which can be easily replaced when worn out.

Technical advantages:

  • Material: aluminum guides (GOST standard), compensator — wear-resistant TPE.
  • Strength: designed for operational loads.
  • Corrosion resistance: resistant to moisture, temperature fluctuations, aggressive environments.
  • Durability: aluminum is corrosion-resistant, compensator can be replaced without dismantling the profile.

Installation:

  • Mounting: mechanical overlay installation using anchors or dowels.

Additional information

Compensator Material

TEP
Country of manufacture

Russia
Profile Type

Straight
Installation Type

Surface-mounted
Load - MPa

no
A (Joint Width), mm

135
B (Insert Width), mm

237
C (Profile Width), mm

237
Length

3000 mm

Installation Guidelines for AQUASTOP® DSHC Expansion Joint Devices

  1. Preparatory Work:
    • Clean the base surface from dirt, debris, and dust.
    • If necessary, level the base with a polymer-cement mixture or equivalent.
    • Repair defects (cracks, pores, exposed reinforcement).
  2. Temperature Conditions: Perform work at air temperatures between +5°C and +30°C.
  3. Layout and Gaps:
    • Install beacons according to the finished floor level (starting from a reference point near the wall).
    • Leave a damping gap ≤10 mm along the perimeter of the walls.
  4. Device Installation:
    • Assemble the sections, embedding the supporting parts into adhesive/sealant.
    • Join sections with 150 mm staggered seams.
    • ⚠️ Prohibited: Use anchor fasteners.
  5. Additional Operations (if required):
    • Fill gaps with polyurethane sealant.
    • Perform thermal welding of the compensator (185-195°C).
    • Apply primer (composition: specify in the project).

Installation diagram of AQUASTOP® DSHC expansion joint device

Universal Requirements:
- Compliance with SP 71.13330-2017;
- Check base evenness with a straightedge (tolerance: ≤2 mm longitudinally, ≤1 mm transversely);
- Fastener tightening torque: (specify for particular model);
- All parameters (A, B, C) are determined by the project.

⚠️ Important! For non-standard conditions, consult OOO TD "GYDROMIX".

Download Files for AQUASTOP® DSHS Expansion Joint Devices

PDFDownload Aquastop Product Catalog Part 2: Expansion Joint Devices
PDFDownload AQUASTOP DSHS Device Specifications
