Expansion Joint Device AQUASTOP DSHV-50/040 is a 3-meter long embedded expansion joint designed for joint installation. This device is suitable for both indoor spaces and open areas. Engineered to compensate for deformations in horizontal and vertical structures (floors, walls, ceilings). Reduces stresses caused by shrinkage and temperature fluctuations. Withstands intensive pedestrian loads.
2286,00 ₽

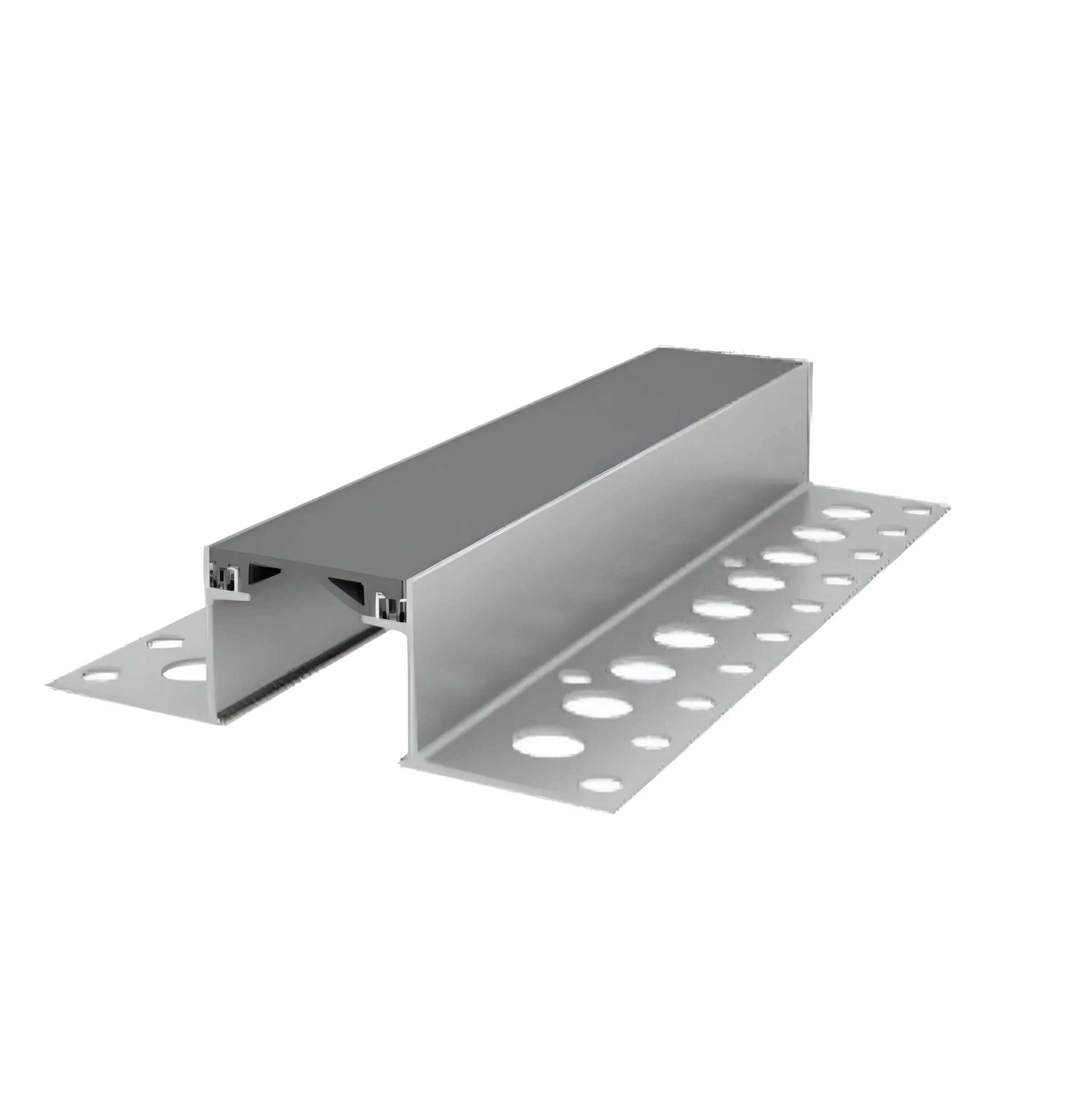

Expansion Joint Devices AQUASTOP Type DSHV — 50/040 — designed for protecting joints in horizontal and vertical structures (floors, walls, ceilings) in areas with high pedestrian traffic: shopping centers, office spaces. Joint width — 40 mm. Suitable for joints in floor structures with thickness — 50 mm. Guide rails are installed using the embedded method. The device consists of perforated aluminum guide rails and a flexible profiled compensator made of thermoplastic elastomer (TPE) in the center.
Technical advantages:
Installation:
| Compensator Material | TEP |
|---|---|
| Country of manufacture | Russia |
| Profile Type | Straight |
| Installation Type | Embedded |
| Load - MPa | 0,15 |

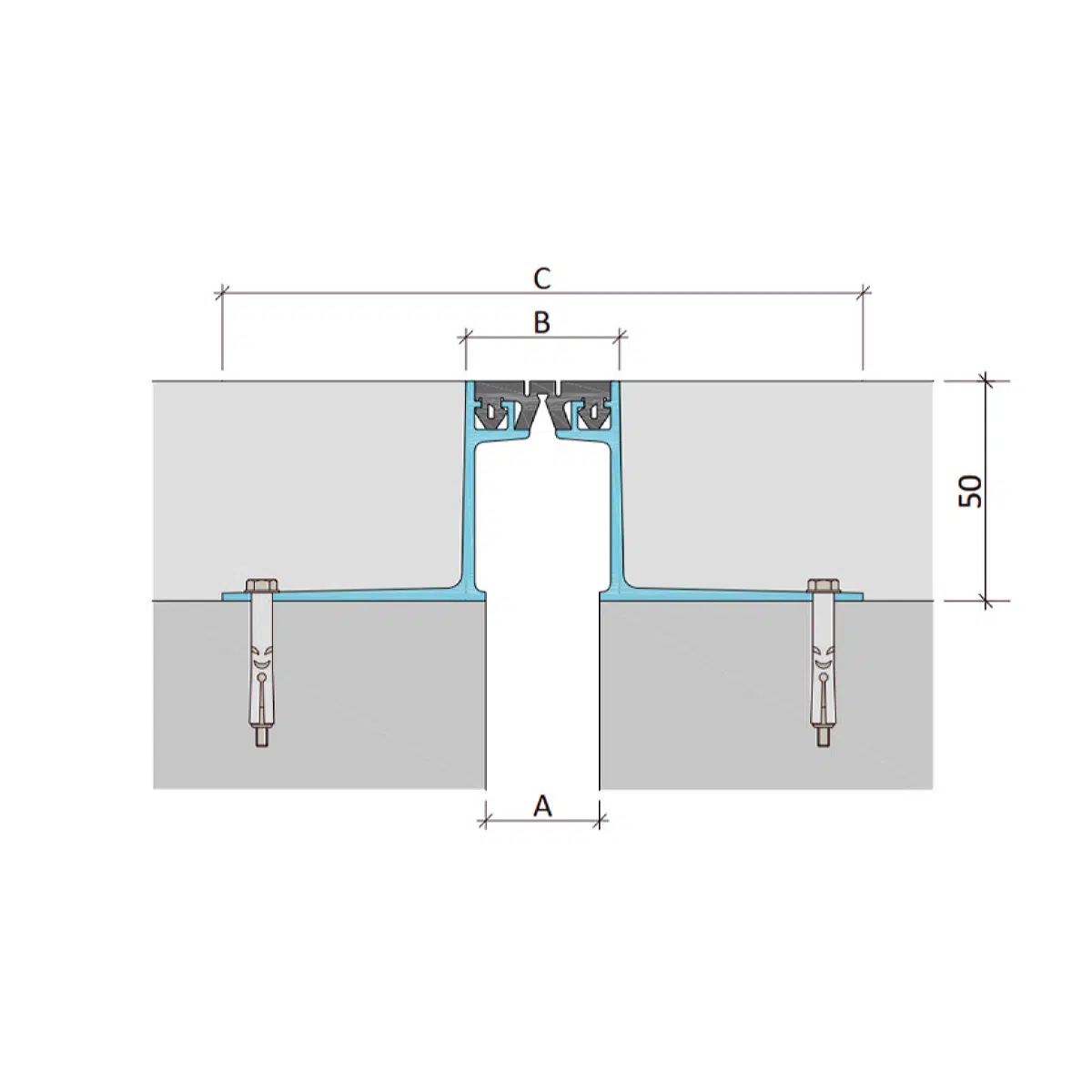

| A (Joint Width), mm | 40 |
| B (Insert Width), mm | 50 |
| C (Profile Width), mm | 140 |
| Profile Height, mm | 50 |
| Length | 3000 mm |
Universal Requirements:
- Compliance with SP 71.13330-2017;
- Check base evenness with a straightedge (tolerance: ≤2 mm longitudinally, ≤1 mm transversely);
- Fastener tightening torque: (specify for particular model);
- All parameters (A, B, C, Bs) are determined by the project.
⚠️ Important! For non-standard conditions, consult OOO TD "GYDROMIX".
